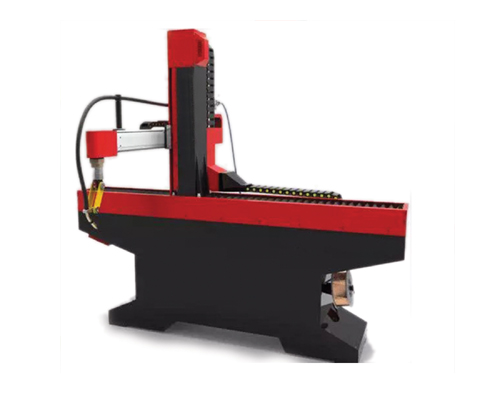

Robot Welding Machine
Four-axis welding host description:
four-axis CNC welding host with X, Y, Z-axis linear motion and R-axis rotation movement, to achieve the welding of the linear line or curve movement and welding gun and workpiece welding angle adjustment. Thus completing the welding of various types of welding. X, Y, Z axis movement system using AC servo motor drive, ball screw drive, guide rail, to achieve the precise control of walking, R-axis AC servo motor drive, precision planetary reducer after the drive. Can accurately control the welding gun and the workpiece welding angle adjustment requirements, with X, Y, Z axis to achieve the completion of the welding process.
Four-axis motion control system features:
- 4 axis freedom degree space trajectory motion (straight line, arc, spiral curve). · Teaching track parameters, easy to operate, and support the teaching of graphics preview function, compared with the teaching of the document is consistent with the actual graphics.
- Multiple I / O port arbitrary programming, to facilitate the full range of automated design.
- During the welding process speed, acceleration, input and output ports can be flexible control adjustment. High precision welding, uniform track, welding stability, high efficiency. * The use of hardware interpolation, can achieve fast linear, circular interpolation and various complex trajectory movement.
