Hose Cutting Machine
| Technical Specifications | |
|---|---|
| Capacity | N / A |
| 2-SN | 1 1/2 “(DN38) |
| 4-SP | 1 ” (DN25) |
| 6-SP | N / A |
| Diam. Ext. Max. | 60 |
| Standard motor (kW) | 2 |
| Optional engine (kW) | N / A |
| Rpm Motor (50Hz) | 2720 |
| Engine Brake | YES |
| Voltage available (V) | 1-Ph: 220 |
| Diam. Ext. Disc (mm) | 210 |
| Type Disc Steel | HSS |

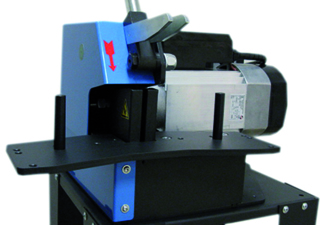

NC-30
Key advantages and performances
- Security Optimal Operator
- Engine Brake
- High quality steel disc
| Technical Specifications | |
|---|---|
| Cooled disc | NO |
| Effort Reducer | NO |
| Hydraulic actuator | NO |
| Aspiration Smoke | OPTION |
| Table Support | OPTION |
| Noise level (dBA) | 80 |
| Diam. Ext. | N / A |
| Overall dimensions (mm) | 540x400x330 (735) |
| Weight (kg) | 37 |
| Standard packing (cm) | 58x70x75 |
| Gross weight (Kg) | 35 |

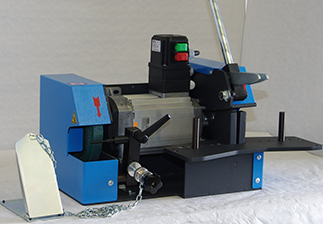

NCB-30
| Technical Specifications | |
|---|---|
| Capacity | N / A |
| 2-SN | 2 ” (DN50) |
| 4-SP | 2 1/2 ” (DN38) |
| 6-SP | 2 1/4 ” (DN32) |
| Diam. Ext. Max. | 70 |
| Standard motor (kW) | 3.8 |
| Optional engine (kW) | N / A |
| Rpm Motor (50Hz) | 2720 |
| Engine Brake | YES |
| Voltage available (V) | 3-Ph: 400 |
| Diam. Ext. Disc (mm) | 275 |
| Type Disc Steel | HSS |
Key advantages and performances
- 2 in 1 machine
- Engine Brake
- External Stripping by Brushing
| Technical Specifications | |
|---|---|
| Cooled disc | NO |
| Effort Reducer | NO |
| Hydraulic actuator | NO |
| Aspiration Smoke | OPTION |
| Table Support | OPTION |
| Noise level (dBA) | 80 |
| Diam. Ext. | N / A |
| Overall dimensions (mm) | 650x460x380 (750) |
| Weight (kg) | 60 |
| Standard packing (cm) | 58x70x75 |
| Gross weight (Kg) | 75 |

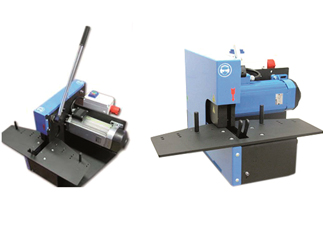

NC-40
| Technical Specifications | |
|---|---|
| Capacity | N / A |
| 2-SN | 2 ” (DN63) |
| 4-SP | 2 1/2 ” (DN50) |
| 6-SP | 1 1/2 ” (DN38) |
| Diam. Ext. Max. | 95 |
| Standard motor (kW) | 5 |
| Optional engine (kW) | 3.8 |
| Rpm Motor (50Hz) | 2760 |
| Engine Brake | YES |
| Voltage available (V) | 3-Ph: 400 |
| Diam. Ext. Disc (mm) | 350 |
| Type Disc Steel | HSS |
Key advantages and performances
- Security Optimal Operator
- Engine Brake
- Gear lever on the lever
- High quality steel disc
| Technical Specifications | |
|---|---|
| Cooled disc | NO |
| Effort Reducer | YES |
| Hydraulic actuator | NO |
| Aspiration Smoke | OPTION |
| Table Support | OPTION |
| Noise level (dBA) | 80 |
| Diam. Ext. | N / A |
| Overall dimensions (mm) | 800x560x465 (880) |
| Weight (kg) | 70 |
| Standard packing (cm) | 50x70x75 |
| Gross weight (Kg) | 98 |

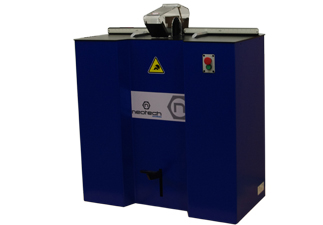

NSC-40
| Technical Specifications | |
|---|---|
| Capacity | N / A |
| 2-SN | 2 ” (DN50) |
| 4-SP | 1 1/2 ” (DN38) |
| 6-SP | 1 1/4 ” (DN32) |
| Diam. Ext. Max. | 80 |
| Standard motor (kW) | 3 |
| Optional engine (kW) | N / A |
| Rpm Motor (50Hz) | 3000 |
| Engine Brake | NO |
| Voltage available (V) | 3-Ph: 400 |
| Diam. Ext. Disc (mm) | 250 |
| Type Disc Steel | CRV |
Key advantages and performances
- Machine on frame
- Simple
- Cutting by foot pedal action
- Safety cover
| Technical Specifications | |
|---|---|
| Cooled disc | NO |
| Effort Reducer | NO |
| Hydraulic actuator | NO |
| Aspiration Smoke | NO |
| Table Support | YES |
| Noise level (dBA) | 80 |
| Diam. Ext. | N / A |
| Overall dimensions (mm) | 1013x550x1135 |
| Weight (kg) | 150 |
| Standard packing (cm) | 120x80x120 |
| Gross weight (Kg) | 175 |

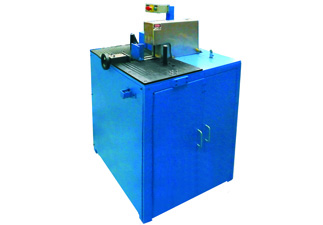

M-16
| Technical Specifications | |
|---|---|
| Capacity | N / A |
| 2-SN | 4 ” (DN100) |
| 4-SP | 2 ” (DN50) |
| 6-SP | 2 ” (DN50) |
| Diam. Ext. Max. | N / A |
| Standard motor (kW) | N / A |
| Optional engine (kW) | N / A |
| Rpm Motor (50Hz) | N / A |
| Engine Brake | N / A |
| Voltage available (V) | 3-Ph: 230,400 |
| Diam. Ext. Disc (mm) | 400 |
| Type Disc Steel | CRV |
Key advantages and performances
- Super robust machine
- Liquid-cooled blade
- Clean cut and limited pollution
- Hydro-pneumatic actuator
| Technical Specifications | |
|---|---|
| Cooled disc | YES |
| Effort Reducer | N / A |
| Hydraulic actuator | YES |
| Aspiration Smoke | N / A |
| Table Support | YES |
| Noise level (dBA) | 80 |
| Diam. Ext. | N / A |
| Overall dimensions (mm) | 864x864x1420 |
| Weight (kg) | 300 |
| Standard packing (cm) | 123x123x160 |
| Gross weight (Kg) | 400 |

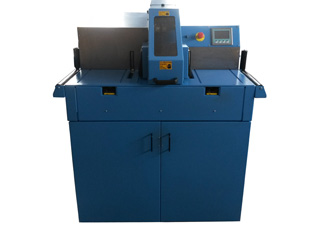

M-20
| Technical Specifications | |
|---|---|
| Capacity | N / A |
| 2-SN | 6 ” (DN150) |
| 4-SP | 3 ” (DN76) |
| 6-SP | 3 ” (DN76) |
| Diam. Ext. Max. | N / A |
| Standard motor (kW) | N / A |
| Optional engine (kW) | N / A |
| Rpm Motor (50Hz) | N / A |
| Engine Brake | N / A |
| Voltage available (V) | 3-Ph: 230,400 |
| Diam. Ext. Disc (mm) | 520 |
| Type Disc Steel | CRV |
Key advantages and performances
- Liquid-cooled Cutting and Blade = Pollution and Limited Contamination
- Hydro-pneumatic actuator
- Automatic management of the cutting force and speed
- Optimum safety with two-hand sensor control
| Technical Specifications | |
|---|---|
| Cooled disc | YES |
| Effort Reducer | N / A |
| Hydraulic actuator | YES |
| Aspiration Smoke | N / A |
| Table Support | YES |
| Noise level (dBA) | 85 |
| Diam. Ext. | N / A |
| Overall dimensions (mm) | N / A |
| Weight (kg) | N / A |
| Standard packing (cm) | N / A |
| Gross weight (Kg) | N / A |
