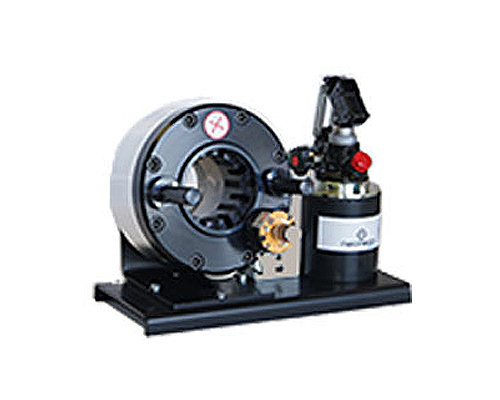

Hose Crimping Machine
NKH-16
Key advantages and performances
- Light and easy-to-carry = ideal for on-site jobs
- Robust and reliable technology
- Double Speed Pump
- Max. Hose 1’’ 2-SN
- Protection of the head between dies
| Die sizes available | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Ø (mm) | 6 | 10 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 39 |
| Length(mm) | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 56 |
| Technical Specifications of NKH-16 | |
|---|---|
| Max hose size | 1 & 2-SN : 1’’ (DN25) 4-SP : ½’’ (DN12) |
| Radial Crimp force | 80 Tons @ 350 bar |
| Crimp range | Ø 6 mm – Ø 43mm |
| Net weight | 27 Kgs |
| Dimensions | – |
| Controls | Micrometric vernier with visual signal |
| Standard Die pack | DS-NKH16-P6 : 15,18,21,24,27,30 |
| Packing | Type : Wood crate Dimension (mm) : Gross weight : 35 Kgs |
| HS Code | 846291 |
NKH-25
Key advantages and performances
- Optimized ratio weight /capacity
- Robust and reliable technology
- Double Speed Pump
- Max. Hose 1.1/4’’ 4-SP
- Precise control with light and sound signal
- Protection of the head between dies
| Die sizes available | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Ø (mm) | 6 | 8 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | |
| Length(mm) | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 56 |
| Ø (mm) | 33 | 39 | 45 | 48 | 51 | 57 | ||||
| Length(mm) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | |||
| Technical Specifications of NKH-25 | |
|---|---|
| Max hose size | 1 & 2-SN : 1 1/4’’ (DN32) 4-SP :1.1/4’’ (DN32) |
| Radial Crimp force | 137 Tons @ 350 bar |
| Crimp range | Ø 6 mm – Ø 57mm |
| Net weight | 40 Kgs |
| Dimensions | – |
| Controls | Micrometric vernier with visual & Sound signal (battery 9V) |
| Standard Die pack | DS-NKH25-P5 : 15,21,27,33,39 |
| Packing | Type : Wood crate NIMP15 Dimension (mm) : 58x70x75cm Gross weight : 58 Kgs |
| HS Code | 846291 |

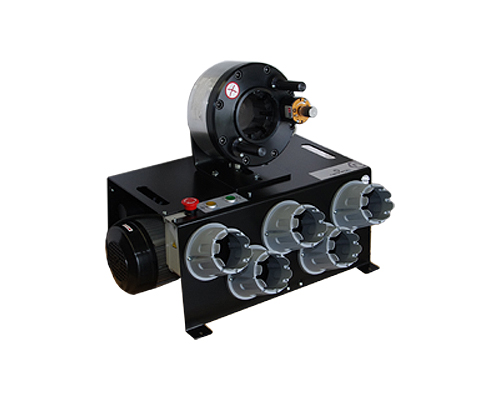

NK-25
Key advantages and performances
- Optimized ratio weight /capacity
- Robust and reliable technology
- Double Speed Pump
- Max. Hose 1.1/4’’ 4-SP
- Precise control with light and sound signal
- Protection of the head between dies
| Die sizes available | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Ø (mm) | 6 | 8 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | |
| Length(mm) | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 56 | |
| Ø (mm) | 33 | 39 | 45 | 48 | 51 | 57 | ||||
| Length(mm) | 70 | 70 | 70 | 70 | 70 | 70 | ||||
| Technical Specifications of NKH-16 | |
|---|---|
| Max hose size | 1 & 2-SN : 1 1/4’’ (DN32) 4-SP :1.1/4’’ (DN32) |
| Radial Crimp force | 137 Tons @ 350 bar |
| Crimp range | Ø 6 mm – Ø 57mm |
| Net weight | 40 Kgs |
| Dimensions | – |
| Controls | Micrometric vernier with visual & Sound signal (battery 9V) |
| Standard Die pack | DS-NKH25-P5 : 15,21,27,33,39 |
| Packing | Type : Wood crate NIMP15 Dimension (mm) : 58x70x75cm Gross weight : 58 Kgs |
| HS Code | 846291 |

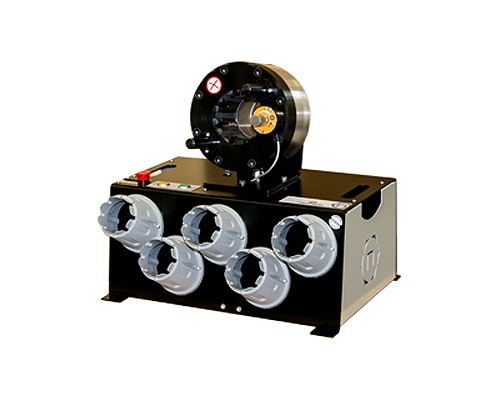

NK-30
Key advantages and performances
- Optimized ratio weight /capacity
- Very simple to use and maintain
- Precise control
- Protection of the head between dies
- Av. in 12 VOLT for use with Battery in Vans
| Die sizes available | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Ø (mm) | 6 | 8 | 10 | 12 | 15 | 18 | 21 | 24 | 27 | 30 |
| Length(mm) | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 70 | 70 | 70 |
| Ø (mm) | 33 | 39 | 45 | 48 | 51 | 57 | 66 | |||
| Length(mm) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | ||
| Technical Specifications of NKH-16 | |
|---|---|
| Max hose size | 1 & 2-SN : 1 1/4’’ (DN32) 4-SP :1.1/4’’ (DN32) |
| Radial Crimp force | 137 Tons @ 320 bar |
| Crimp range | Ø 6 mm – Ø 57mm |
| Net weight | 68 Kgs |
| Motor | 2.2 kW 220V 1-PH / 400V 3-PH Also available in 110V 1-PH 60hz, 12 VDC, 24V DC |
| Dimensions | – |
| Controls | Micrometric vernier |
| Standard Die pack | DS-NKH25-P5 : 15,21,27,33,39 |
| Packing | Type : Wood crate NIMP15 Dimension (mm) : 58x70x75cm Gross weight : 98 Kgs(with oil/5DS) |
| HS Code | 846291 |

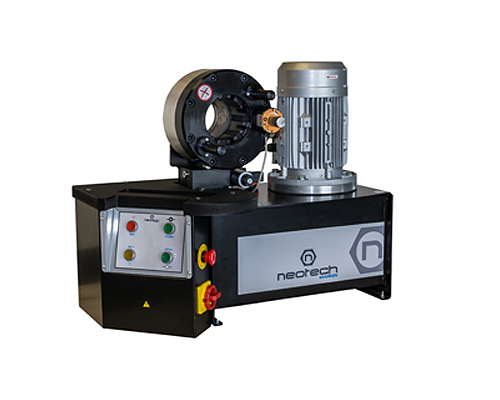

NK30-PRO
| Die sizes available | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Ø (mm) | 6 | 8 | 10 | 12 | 15 | 18 | 21 | 24 | 27 | 30 |
| Length(mm) | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 70 | 70 | 70 |
| Ø (mm) | 33 | 39 | 45 | 48 | 51 | 57 | 66 | |||
| Length(mm) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | ||
| Technical Specifications of NKH-16 | |
|---|---|
| Max hose size | 1 & 2-SN : 1.1/2’’ (DN38) 4-SP : 1.1/4’’ (DN32) 6-SP & Interlock : 1 ’ (DN25) 2 x Elbows 90° : up to 1 ¼’’ |
| Radial Crimp force | 150 Tons @ 320 bar |
| Crimp range | Ø 6 mm – Ø 57mm |
| Net weight | 130 Kgs |
| Motor | 3 kW 3-PH / 2.2 kW 220V 1-PH |
| Dimensions | 795 x 438 x 650 mm |
| Controls | Micrometric vernier |
| Standard Die pack | 15,18,21,24,27,33,39,48 |
| Packing | Type : Wood crate Dimension (mm) : 110x78x110 Gross weight : 185 kgs (with oil/8DS) |
| Options | Quick Change Gun (QCG-NLS), Support Table (ST-12PDR), Die storage Racks (PDR), Foot switch (FS-NK) |

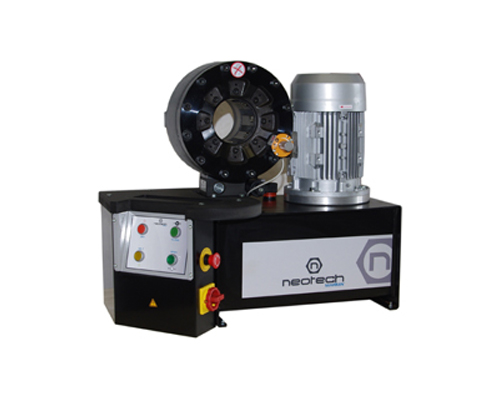

NK40
| Die sizes available | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Ø (mm) | 6 | 8 | 10 | 12 | 15 | 18 | 21 | 24 | 27 | 30 |
| Length(mm) | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 70 | 70 | 70 |
| Ø (mm) | 33 | 39 | 45 | 48 | 51 | 57 | 66 | 70 | ||
| Length(mm) | 70 | 90 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| Technical Specifications of NKH-16 | |
|---|---|
| Max hose size | 1 & 2-SN : 2’’ (DN50), 4-SP : 2’’ (DN50), 6-SP & Interlock : 1 ¼’’ (DN32), 2 x Elbows 90° : up to 1 ¼’’ |
| Radial Crimp force | 200 Tons @ 300 bar |
| Crimp range | Ø 6 mm – Ø 76mm |
| Net weight | 180 Kgs |
| Motor | 3 kW 3-H or 1-PH |
| Dimensions | 795 x 438 x 690 mm |
| Controls | Micrometric vernier |
| Standard Die pack | 15,18,21,24,27,33,39,48 |
| Packing | Type : Wood crate Dimension (mm) : 110x78x110 Gross weight : 225 kgs (with oil/8DS) |
| Options | Quick Change Gun (QCG-NLS°, Support Table (ST-12PDR), Die storage Racks (PDR), Foot switch (FS-NK) |

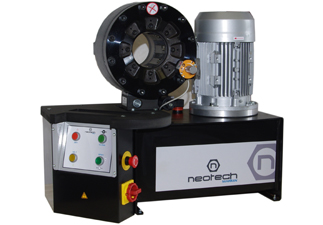

NK40-PRO
| Die sizes available | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Ø (mm) | 6 | 8 | 10 | 12 | 15 | 18 | 21 | 24 | 27 | 30 |
| Length(mm) | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 70 | 70 | 70 |
| Ø (mm) | 33 | 39 | 45 | 48 | 51 | 57 | 66 | 70 | ||
| Length(mm) | 70 | 90 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| Technical Specifications of NKH-16 | |
|---|---|
| Max hose size | 1 & 2-SN : 2’’ (DN50), 4-SP : 2’’ (DN50), 6-SP & Interlock : 1 ¼’’ (DN32), 2 x Elbows 90° : up to 1 ¼’’ |
| Radial Crimp force | 240 Tons @ 340 bar |
| Crimp range | Ø 6 mm – Ø 76mm |
| Net weight | 185 Kgs |
| Motor | 4 kW 3-PH |
| Dimensions | 795 x 438 x 690 mm |
| Controls | Micrometric vernier |
| Standard Die pack | 15,18,21,24,27,33,39,45,51,57,66 |
| Packing | Type : Wood crate Dimension (mm) : 110x78x110cm Gross weight : 235 kgs (with oil/11DS) |
| Options | Quick Change Gun (QCG-NLS°), Support Table (ST-12PDR), Die storage Racks (PDR), Foot switch (FS-NK), Silent Pump |

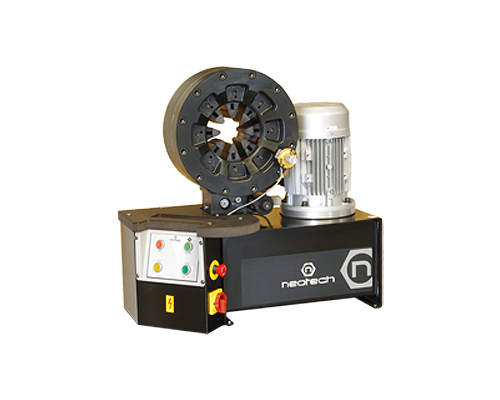

NK60
| Die sizes available | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ø (mm) | 6 | 8 | 10 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | 39 | 45 | 48 |
| Length(mm) | 56 | 56 | 56 | 56 | 56 | 56 | 56 | 70 | 70 | 70 | 70 | 70 | 100 | 100 |
| Ø (mm) | 66 | 73 | 80 | 86 | 90 | 96 | 106 | 116 | 122 | 130 | 136 | |||
| Length(mm) | 100 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | |||
| Technical Specifications of NKH-16 | |
|---|---|
| Max hose size | 1 & 2-SN : 4’’ (DN100), 4-SP : 2’’ (DN50), 6-SP & Interlock : 2’’ (DN50), 2 x Elbows 90° |
| Radial Crimp force | 350 Tons @ 340 bar |
| Crimp range | Ø 6 mm – Ø 145mm |
| Net weight | 240 Kgs |
| Motor | 4 kW 3-PH |
| Dimensions | – |
| Controls | Micrometric vernier |
| Standard Die pack | 15,18,21,24,27,33,39,45,51,57,66,73 |
| Packing | Type : Wood crate Dimension (mm) : 110x78x110cm Gross weight : 320 kgs (with oil/12DS) |
| Options | Quick Change Gun (QCG-NLS), Support Table (ST-12-PDR), Die storage Racks (PDR), Foot switch (FS-NK), Silent Pump |

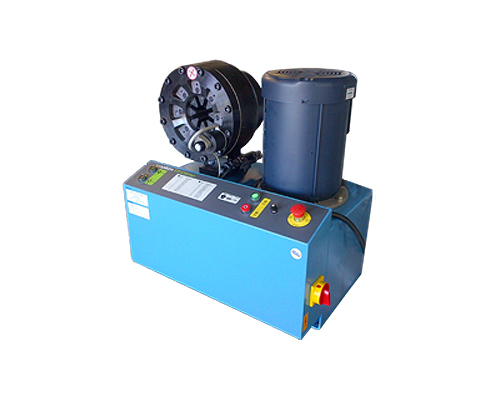

KP40/KP60
Key advantages and performances
- Heavy Duty Electrical Components
- Fast hydraulic pump
- Large Oil Tank
- Semi-automatic control for serial assemblies
| Technical Specifications of NKH-16 | ||
|---|---|---|
| Max hose size | 1 & 2-SN : 2’’ (DN50), 4-SP : 2’’ (DN50), 6-SP & Interlock : 1 14’’, (DN32), 2 x Elbows 90° : up to 1 ¼’’ | 1 & 2-SN : 4’’ (DN100), 4-SP : 2’’ (DN50), 6-SP & Interlock : 2’’ (DN50), 2 x Elbows 90° : up to 2 ½’’ |
| Radial Crimp force | 200 Tons @ 300 bar | 350 Tons @ 340 bar |
| Crimp range | Ø 6 mm – Ø 76 mm | Ø 6 mm – Ø 145 mm |
| Net weight | 185 Kgs | |
| Motor | 4 kW 3-PH Speed Option 5.5k |
4 kW 3PH Speed Option 5.5k |
| Dimensions | 750 x 500 x 700 mm | 750 x 500 x 850 mm |
| Controls | Micrometric vernier | |
| Standard Die pack | 15,18,21,24,27,33,39,45,51,57,66 | |
| Packing | Type : Wood crate Dimension (mm) : 1210x78x110 Gross weight : 320 Kgs (KP40) / 400 Kgs (KP60) |
|
| Options | Quick Change Gun (QCG-NLS°), Support Table (ST-12PDR), Die storage Racks (PDR), Foot switch (FS-NK), Silent Pump (reduces noise down to 63 dB) | |
